HPE StoreEasy 1660 SAS Storage
Flexible File and Application Storage

Features:

Customized and Tailored for File Storage

HPE StoreEasy 1000 Storage is built on industry-leading HPE ProLiant Gen10 DNA and comes with pre-configured hardware and Microsoft Windows Storage Server 2016 OS. Get your NAS out of the box and online fast with tools that simplify installation and curb common configuration errors.

The new HPE StoreEasy Management Console is 2X as simple to manage¹ enables administrators with any level of storage expertise to simplify core operations, including management of volumes, file shares, quotas, snapshots, and external enclosures.

Leverage the HPE StoreEasy Management Console’s data-driven insights on capacity usage and performance to simplify planning. Administrators can easily identify maintenance windows and plan for capacity expansion with ease.

Economical hard disk drive (HDD) bundles make it easier for you to buy, deploy and provision additional storage capacity as your data needs grow using guided configurations. Quickly configure low-capacity email alerts to reduce disruption caused by capacity limitations.

Efficiency Saves you Time and Money

Achieve an average of 50 percent space savings with granular data deduplication and compression. An enhanced Microsoft Windows deduplication engine supports large files, up to 1 TB, and volumes up to 64 TB.

Built-in file sync and share enables employees, mobile workers and distributed teams to access their work files from any internet-connected desktop, smartphone, or tablet. Organizations can apply policies to wipe devices remotely and enforce lock screen passwords to protect data on employee devices.

Advanced data management capabilities automatically improve use of resources, comply with data retention policies, and enhance protection of sensitive files, even if they’re downloaded from HPE StoreEasy and emailed to unauthorised recipients.

File Classification Infrastructure can dynamically identify files based on sensitivity and implement sophisticated access controls based on your organization's requirements using Active Directory Rights Management Services.

Multi-dimensional Protection for Your Data

Built from the world's most secure industry-standard servers² the sixth generation of HPE StoreEasy 1000 Storage provides expanded security capabilities to help you protect your employees, customers, and organization in an evolving threat landscape.

HPE StoreEasy 1000 Storage protects data at rest with file system encryption and Microsoft BitLocker® drive encryption, as well as data in flight through SMB encryption and signing, and at the physical level with a lockable bezel.

Install and run endpoint protection such as antivirus on the system itself, which reduces the cost and complexity of connecting an external endpoint protection server. Prevent against data loss with Volume Shadow Copy Service online snapshots and simple cloud backup to Microsoft Azure.

Highly Resilient to Prevent Disruption to Your Business and Users

HPE StoreEasy 1000 Storage increases uptime with standard features including nearly continuous health monitoring with HPE Active Health System, redundant components, file system online self-healing, online verification, and rapid repair that reduces downtime from file corruption to minutes.

Protect data from simple errors or massive failures using built-in replication (up to 100 TB) or opt for Carbonite Availability replication software for real-time byte-level replication between sites.

Comprehensive, full system support from HPE file storage experts with onsite parts and labor warranty for the system and software telephone support. Expand or enhance your base support coverage through optional services from HPE Pointnext for HPE StoreEasy 1000 Storage.

Advanced diagnostics and near-continuous monitoring, enabled by the HPE Integrated Lights-Out (iLO) Management Engine, deliver greater stability and shorter downtimes.

¹ Based on HPE internal testing with 50% fewer tools and fewer actions for key NAS administrative tasks
² Based on results of external, third-party penetration testing of servers from different manufacturers

Specifications:

HPE StoreEasy 1660 Storage Specifications
Capacity	16TB, 32TB and 64TB Depends on configuration (256 TB raw maximum)
Host interface	4 x 1GbE stardard
Protocol Supported	SMB, NFS, iSCSI over Ethernet, FTP/S, HTTP/S
Replication support	Microsoft DFS-R, optional Carbonite Double-Take Availability
Storage expansion options	All HPE StoreEasy 1000 Storage systems can be expanded externally using an HPE Smart Array controller with external ports and HPE D3610, D3710, or D6020 disk enclosures.
Compatible operating systems	Windows Storage Server 2016 Standard Edition Operating System is pre-installed on all HPE StoreEasy 1000 Storage systems. Client operating systems supported include Microsoft Windows, Mac OS, Linux, and Unix.
Management features	HPE StoreEasy management console, HPE iLO5, HPE Smart Storage Administrator, Windows Server Manager
Drive description	12 x LFF (3.5") hot-plug front drive bays standard. 4 x LFF (3.5") hot-plug front drive bays open 4 x LFF hot-plug mid-chassis drive cage is optional.
HD type	Hot plug SATA or SAS, SFF (2.5") or LFF (3.5") (depending on model)
Snapshot support	Microsoft Volume Shadow Copy Service (VSS)
Form Factor (fully configured)	2U rackmount (LFF drives)
Warranty	3/3/3 system warranty includes three years of parts, three years of labor, three years of onsite support coverage, next business day response. Software media is warranted to be free of physical defect for a period of 90 days from delivery. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home

Hardware Specs:

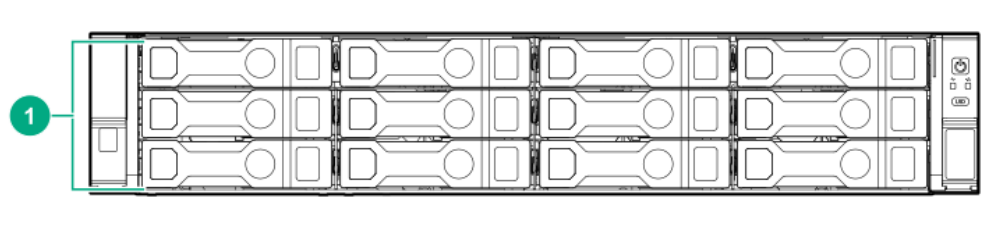

Front View

1. 12 x LFF SATA/SAS Hot Pluggable Drive Bays

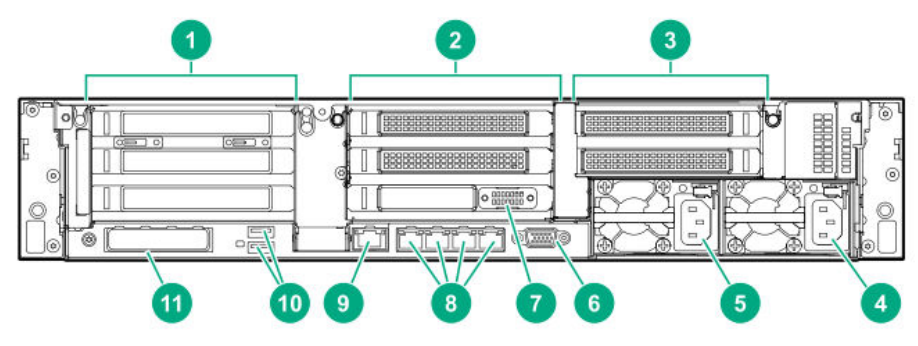

Rear View

1. Primary Riser slots 1-3
2. Primary Riser slots 4-6 (optional)
3. Not used
4. Power Supply 1
5. Power Supply 2
6. Video port
7. Not used
8. 1Gb RJ-45 ports 1-4
9. iLO management port
10. USB 3.0 ports
11. FlexibleLOM slot

Views:

Services:

HPE Pointnext

Access expertise at every step of your IT journey with HPE Pointnext Services. Advisory Services focuses on your business outcomes and goals, to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services help speed up time-to-production and keep your IT stable and reliable.

Operational Services

• HPE Datacenter Care helps modernize and simplify IT operations. Partner with an assigned account team, access technical expertise, an enhanced call experience gives you priority access, choose hardware and software support, implement proactive monitoring to help stay ahead of issues, and access HPE IT best practices and IP.
• HPE Flexible Capacity offers an enhanced call experience and helps reduce problems with personalized proactive reports and advice. This also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.).
• HPE Foundation Care helps when there is a problem and has a choice of response levels. Collaborative software support is included and provides troubleshooting help for ISVs running on your server.

Other Related Services

Defective Media Retention
Defective Media Retention is optional and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE Service Credits
HPE Service Credits offers a menu of technical services, access additional resources, and specialist skills.

HPE Education Services
HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation.

Consult your HPE Sales Representative or Authorised Channel Partner of choice for any additional questions and support options.

Documentation:

Download the hpe storeeasy 1660 storage datasheet (.pdf)
