HPE ProLiant DL385 Gen10 Plus Server
Advanced performance for virtualization and memory-intensive workloads

Features:

HPE ProLiant is the intelligent compute foundation for hybrid cloud, delivering unmatched workload optimization, security, and automation, all available as-a-Service.

Optimized for hybrid cloud

The foundational intelligence of HPE ProLiant transforms IT with insights that optimize workload performance, placement, and efficiency, delivering better outcomes faster.

• A standard feature of HPE ProLiant, workload matching encapsulates decades of HPE performance engineering expertise into preconfigured, user-selectable profiles that automatically optimize hundreds of BIOS setting combinations to precisely match server resources to workload requirements. Workload matching eliminates the trial-and-error-and risk-of server tuning, delivering the performance and efficiency of a server ideally suited to its workload tasks.
• Built on the experience of over a thousand hybrid cloud engagements, HPE Right Mix Advisor delivers data-driven guidance to quickly and confidently move workloads to the right mix of hybrid cloud platforms, ensuring optimized performance to meet business-specific needs while speeding migrations from months to weeks and reducing costs as much as 40%.

Intelligent automation

The intelligence built into HPE ProLiant simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability.

• Embedded in HPE ProLiant, HPE iLO 5 is the HPE-exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.
• HPE iLO uses a fully Redfish-conformant HPE iLO RESTful application programming interface (API) to provide simple and secure management for today’s cloud- and web-based infrastructures across a wide variety of operations and orchestration tools from HPE and others.
• A foundational element in the software-defined infrastructure of hybrid cloud environments, HPE OneView offers an automated, template-driven approach for deploying, provisioning, updating, and integrating compute, storage, and networking infrastructure.
• Building on the operational data of tens of thousands of servers, HPE InfoSight provides continual AI-driven insight to server operations, predicting and preventing problems before IT operations are impacted. ts a wide range of operating systems making it suitable for most environments.

360-degree security

Already the world’s most secure industry-standard server, HPE ProLiant provides an enhanced holistic, 360-degree view to security that begins in the manufacturing supply chain and concludes with a safeguarded, end-of-life decommissioning.

• Silicon root of trust validates the AMD Secure Processor, which in turn validates the UEFI BIOS before the server is allowed to boot.
• The AMD Secure Processor also manages Secure Encrypted Virtualization, which encrypts virtual machines (VMs) isolating them from one another and even the hypervisor itself, and Secure Memory Encryption, which protects against cold boot, DRAM interface snooping, and similar attacks.
• Automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application, and data connections, are enabled by server system restore, providing the fastest path to bring a server back online and into normal operations.
• One Button Secure Erase offers a simple, safeguarded removal of passwords, configuration settings, and data from a server being repurposed or retired.

Delivered as-a-Service

HPE provides customers choice in how they acquire and consume IT. Beyond traditional financing and leasing, HPE offers options that free trapped capital, accelerates infrastructure updates, and provides on-premises pay-per-use consumption.

• HPE Accelerated Migration allows enterprises to free capital trapped in current infrastructure to reinvest for innovation.
• HPE GreenLake provides pay-per-use IT consumption on-premises with real-time tracking and metering of resource usage, so IT capacity is always available to deploy quickly, paying for only the resources consumed.
• HPE InfoSight with AI-enabled analytics provides recommendations for problem resolution driving TCO down and preventing costly service outages.

Target Use Cases:

Workloads

Technology that delivers the right balance of server resources, memory, and I/O to better meet workload needs, including 64 processor cores operating at up to 3.4 GHz, 9% memory speed improvement operating at up to 3200 MT/s, PCIe 4 offering double the I/O bandwidth, and 2.4X greater storage capacity over previous generations.

Virtualization

High core count processors coupled with high speed, high capacity memory make the HPE ProLiant DL385 Gen10 Plus the perfect cornerstone to virtualized environments, maximizing VM density.

Software-defined storage

The HPE ProLiant DL385 Gen10 Plus delivers maximum capacity and versatility with high frequency processors, increased memory capacity, and greater I/O bandwidth, as well as the ability to scale storage quickly and cost-effectively as data volumes expand.

Big Data

HPE ProLiant DL385 Gen10 Plus is a modular compute and storage building block delivering high-performance cores attached to massive memory footprints connected the multiple memory channels that Big Data environments crave.

High-performance computing

High core count processors operating at high frequencies, high speed, high capacity memory, and high bandwidth/low latency access to PCIe 4 accelerators and high-speed interconnects, the HPE ProLiant DL385 Gen10 Plus server unlocks a whole new level of high-performance computing applications.

Telecommunication

The HPE ProLiant DL385 Gen10 Plus server delivers like no other server on the market as it supports the richest memory configurations and network interface cards and accelerators connected over PCIe 4 to minimize latency.

Specifications:

Hardware Specs:

HPE ProLiant DL385 Gen10 Plus Server

The HPE ProLiant DL385 Gen10 Plus Server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD EPYC 7002 Series Processors , the HPE ProLiant DL385 Gen10 Plus Server offers greater processing power, faster memory speeds up to 3200 MT/s. and increased data transfer rates with PCIe Gen4 capabilities.

This 2P, 2U server has been designed with flexibility while delivering a high core count and large memory footprint. Choose this purpose-built platform for virtualization, High Performance Compute and memory centric workloads.

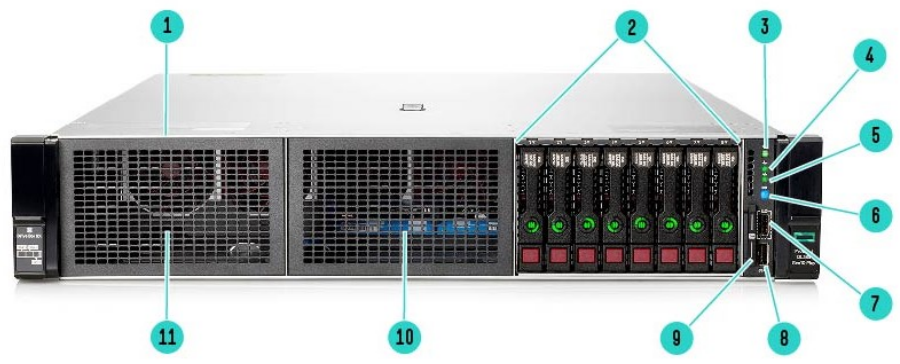

HPE ProLiant DL385 Gen10 Plus 8 SFF Server- Front View

1. Quick removal access panel
2. Box3: 8SFF SAS/SATA shown
3. Power On/Standby button and system power LED button
4. Health LED
5. NIC Status
6. UID Button/LED
7. iLO Front Service Port
8. USB 3.1 Gen1
9. Serial label pull tag
10. Box1: Optional 8SFF SAS/SATA or 8 NVMe (not populated)
11. Box2: Optional 8SFF SAS/SATA or 8 NVMe (not populated)

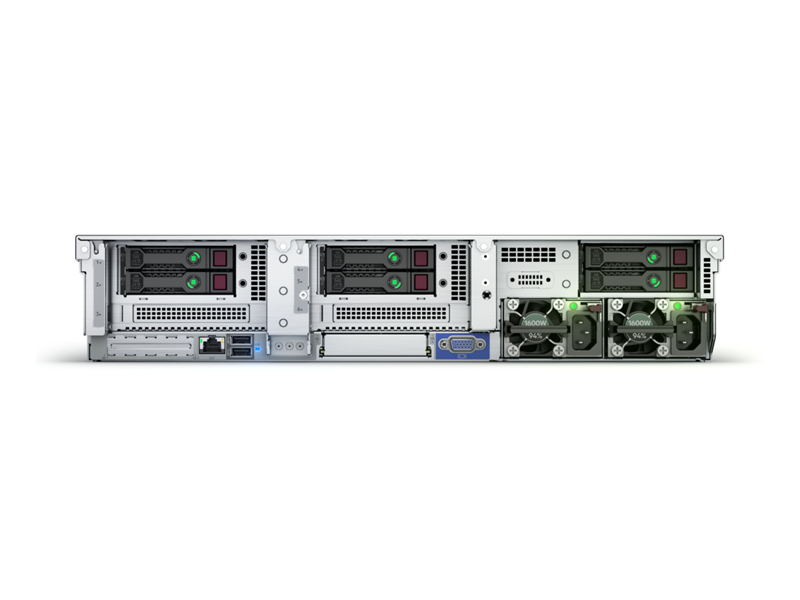

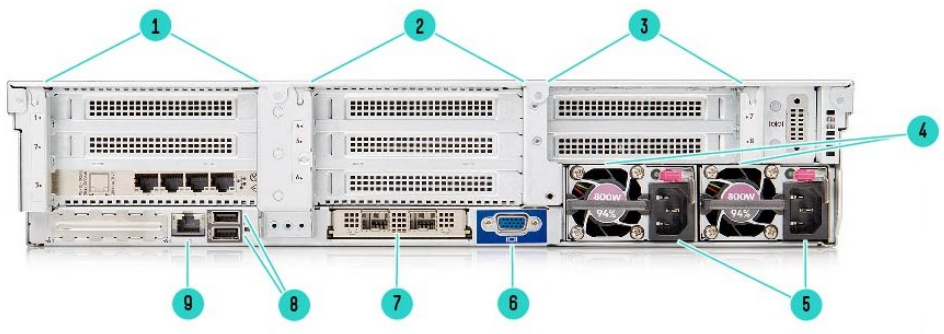

HPE ProLiant DL385 Gen10 Plus Server - Rear View

1. Primary Riser. PCIe Slots¹
2. Optional Secondary Riser. PCIe Slots²
3. Optional Tertiary Riser, PCIe Slots (Slots 7-8 top to bottom)
4. HPE Flexible Slot Power Supply Bay 1 & 2
5. Power supply power connection. Bay 1 & 2
6. VGA Connector
7. OCP 3.0 Slot
8. USB 3.1 Gen1 connectors (2)
9. Dedicated iLO management port

Notes:
¹ Slots 1-3 top to bottom, Slot 3 populated with 4 Port 10 GB NIC) Optional 2SFF rear drives
² Slots 4-6 top to bottom, requires second riser card, and second processor). Optional 2 SFF rear drives

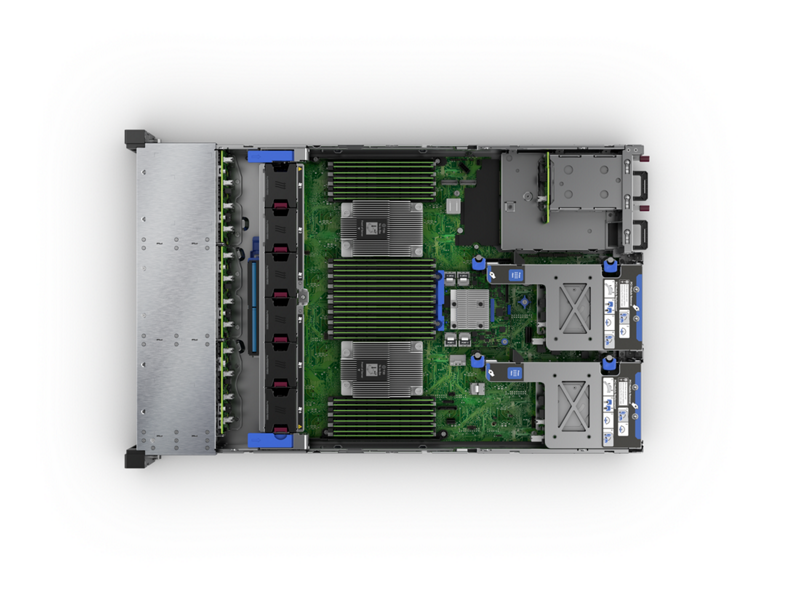

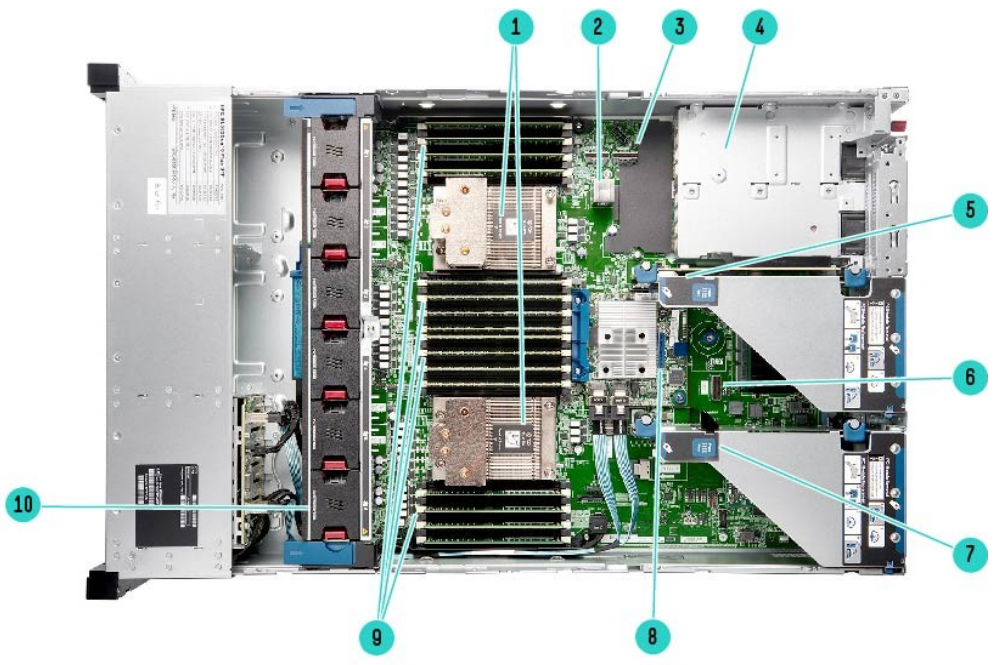

HPE ProLiant DL385 Gen10 Plus Server - Internal View
8SFF chassis with optional 2nd CPU

1. Primary & Secondary Processors
2. Dual USB Port
3. Chassis intrusion detection connector
4. Hot Plug redundant HPE Flexible Slot Power supplies
5. Optional Secondary & Tertiary Risers
6. OCP x16 Uprgrade Connector
7. Primary PCIe riser, standard
8. Flexible Smart Array Connector
9. DDR4 DIMM slots¹
10. Fan cage shown with 6 standard Hot-plug fans²

Notes:
¹ Shown half populated in 1 DPC
² Max Performance fans optional

Views:

Services:

HPE Pointnext

HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes-Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.

Operational Services

• HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
• HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
• HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
• HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.

Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.

Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.

Documentation:

Download the hpe proliant dl385 gen10 plus server datasheet (.pdf)
