HPE ProLiant ML30 Gen10 Server
ProLiant ML Servers

Features:

Powerful Yet Affordable Server for Your Daily Office Workloads

The HPE ProLiant ML30 Gen10 server, powered by up to 6 cores in the Intel Xeon E Processor and up to 64 GB of 2666 MT/s DDR4 ECC UDIMM, delivers abundant performance for small- to mid-sized business applications.

Up to 61.44 TB storage capacity makes HPE ProLiant ML30 Gen10 server an ideal data storage solution for your business to cope with the increasing amount of data. Onboard M.2 slot with NVMe SSD support delivers outstanding speed for boot drive.¹

The option of a dedicated HPE iLO port allows you to dedicate more bandwidth to network functions to achieve higher network performance.

The embedded SATA HPE Smart Array S100i Controller ships standard and the redesigned HPE Smart Array Controllers allow you the flexibility to choose the 12 Gbps controller that is most suited to your environment.

With selection of Hewlett Packard Enterprise qualified professional 3D graphics cards, HPE ProLiant ML30 Gen10 server can easily handle graphical workloads such as medium size CAD models, basic digital content creation, and medical imaging.

Variety of Enterprise-class Features to Achieve Business Growth with Lower TCO

The HPE ProLiant ML30 Gen10 server offers flexibility in different storage needs. With the choice of four Large Form Factor (LFF) non-hot-plug, hot-plug, or eight Small Form Factor (SFF) hot-plug drive options, you can find the right storage fit for your growing business.

The selective HPE 500W Flex Slot Platinum Hot Plug Power Supply Kit enhances reliability, and lets you share spares across multiple server platforms.

Error-Correcting Code (ECC) memory protects business from data loss and unplanned system downtime.

The HPE ProLiant ML30 Gen10 server offers a complete set of embedded HPE Integrated Lights Out (iLO 5) for Gen10 Servers management features, which includes HPE iLO with Agentless Management, Active Health System, and intelligent provisioning.

Security Innovations

The HPE ProLiant ML30 Gen10 server is one of the Hewlett Packard Enterprise industry-standard servers with major firmware anchored directly into the silicon security protection built-in across the server lifecycle, starting with silicon root of trust.

Millions of lines of firmware code run before server operating system boots. With Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorised access to the server and reliably store artifacts used to authenticate the server.

Industry-Leading Services and Ease of Deployment

The HPE ProLiant ML30 Gen10 server comes with a complete set of services from HPE Pointnext, delivering confidence, reducing risk, and helping you realize agility and stability.

Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Service professionals understand customer challenges and design an enhanced solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

Services provided under Operational Services include: HPE GreenLake Flex Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services, and multivendor coverage.

Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

¹ HPE ProLiant ML30 Gen10 server supports onboard M.2 SSD with PCIe 3.0 x2 bandwidth.

Specifications:

HPE ProLiant ML30 Gen10 Server Specifications
Processor Name	Intel
Processor family	Intel Xeon E Processor Intel Core i3 Processor Intel Pentium Processor
Number of processors	1
Processor core available	2 to 6 core, depending on processor
Processor cache	4 to 12 MB L3, depending on processor
Processor speed	3.8 GHz, maximum depending on processor
Expansion slots	4, for detailed descriptions reference the QuickSpecs
Maximum memory	64 GB with 16 GB DDR4
Memory slots	4
Memory type	HPE DDR4 Standard Memory
Memory protection features	Unbufferred ECC
Network controller	HPE 1 Gb 332i Ethernet adapter, two ports per controller
Storage controller	1 HPE Smart Array S100i
Minimum dimensions ( H x W x D)	14.5 x 6.89 x 18.7 in 36.83 x 17.5 x 47.5 cm
Weight	22.1 lb minimum, 38.7 lb maximum 10.1 kg minimum, 17.6 kg maximum
Infrastructure management	Included - HPE iLO Standard with intelligent provisioning (embedded), HPE Systems Insight Manager (requires download), HPE OneView Standard (requires download, available in early 2019) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download, available in early 2019)

Hardware Specs:

HPE ProLiant ML30 Gen10 Server

The HPE ProLiant ML30 Gen10 Server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost.

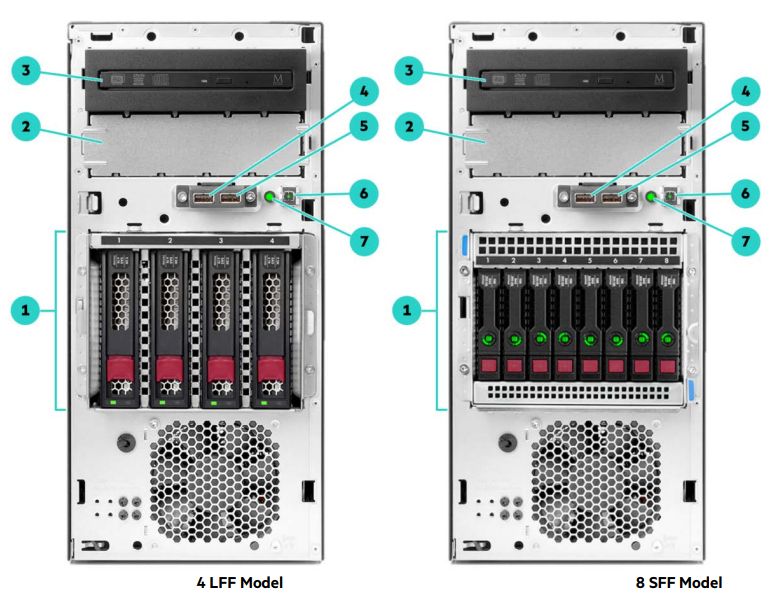

Front View (details for 4LFF and 8SFF)

1. Four (4) LFF or Eight (8) SAS/SATA HDD cage
2. Media drive bay 2 (blank shown)
3. Media drive bay 1 (optional slim-line DVD shown)
4. USB 3.0 port
5. USB 2.0 port
6. Power On/Standby button and system power LED
7. Health LED

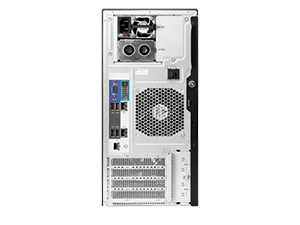

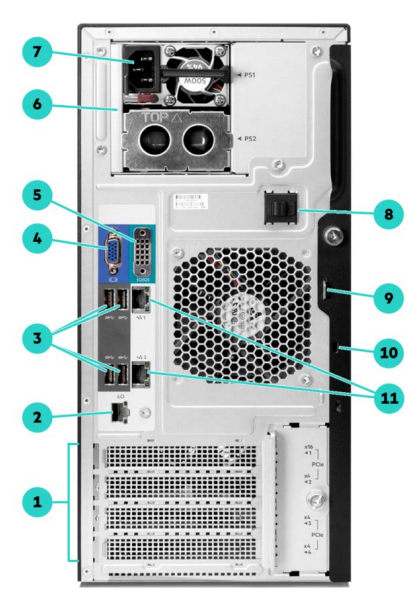

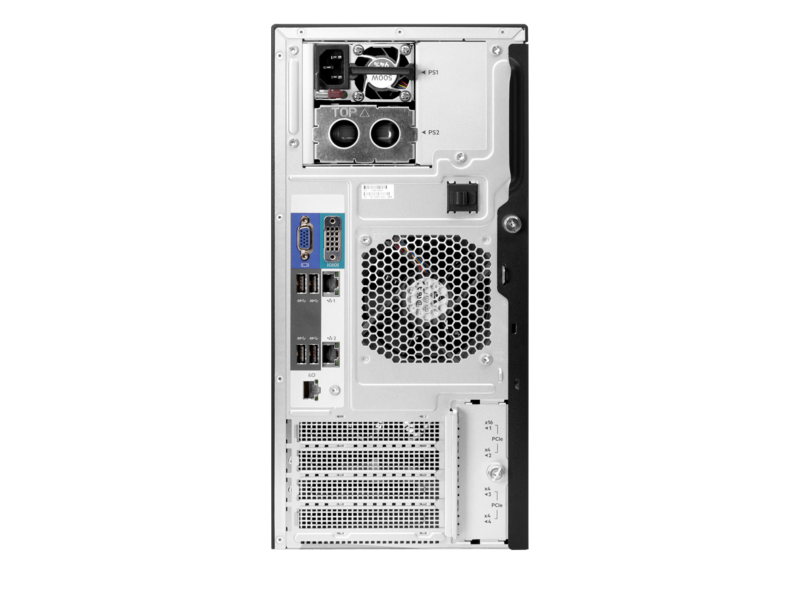

Rear View

1. PCI slots (slots 1-4)
2. Dedicated iLO management port (optional)
3. Four (4) USB 3.0 ports
4. VGA port
5. Serial port (optional)
6. Power supply bay (one optional redundant power supply with enablement kit and blank shown)
7. Power supply power connector
8. Power cord clip
9. Padlock eye
10. Kensington security slot
11. NIC1/shared iLO port (upper), NIC2 port (lower)

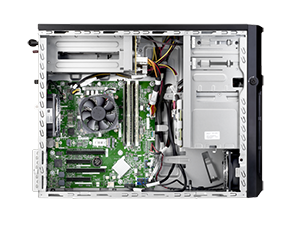

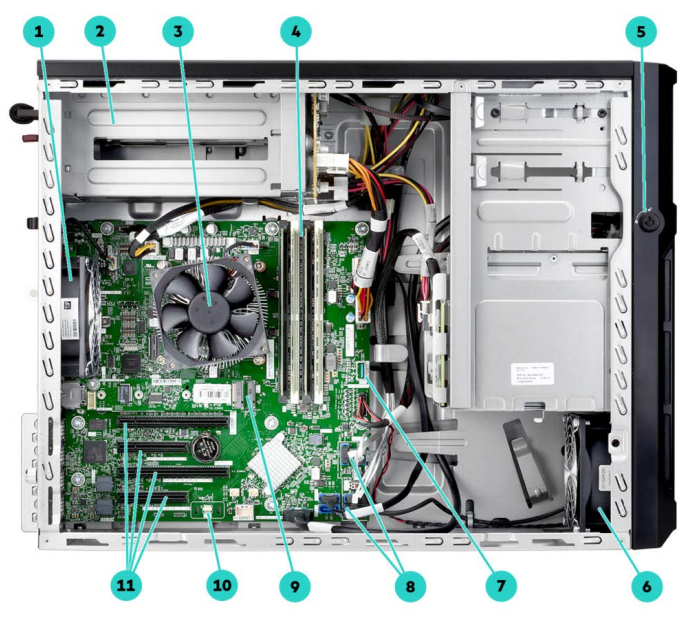

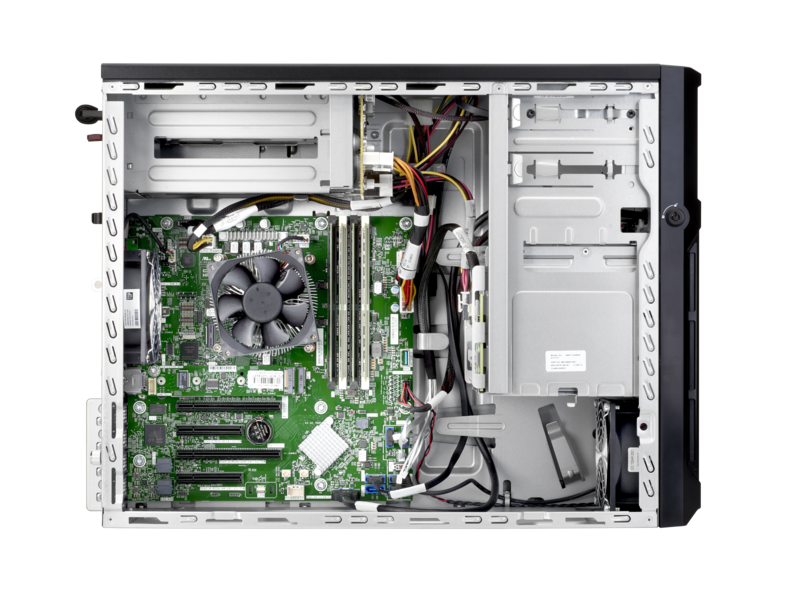

Internal View

1. System Fan
2. Power Supply
3. One (1) processor and heatsink
4. Four (4) DDR4 DIMM slots
5. Bezel Lock
6. Front PCI fan (optional or included, depending on models)
7. One (1) internal USB 3.0 port
8. Six (6) SATA ports
9. One (1) M.2 slot (optional module shown)
10. TPM connector
11. Four (4) PCIe expansion slots

Views:

Services:

HPE Pointnext

HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes-Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.

Operational Services

• HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
• HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
• HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
• HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.

Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.

Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.

Documentation:

Download the hpe proliant ml30 gen10 server datasheet (.pdf)
