HPE ProLiant DL380 Gen10 Server
ProLiant DL Servers

Features:

Flexible Design Making Your Investment Expand As Your Business Needs Grow

The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.

HPE DC Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.

In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.

Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.

Supporting a wide range of operating environments from Azure to Docker to ClearOS in addition to traditional OSes.

Security Innovations

Only Hewlett Packard Enterprise offers industry standard servers with major firmware anchored directly into the silicon. Starting with silicon root of trust, security protection is built in across the server life-cycle.

New features include Server Configuration Lock that ensures secure transit and locks server hardware configuration, iLO Security Dashboard helps detect and address possible security vulnerabilities and Workload Performance Advisor provides server tuning recommendations for better server performance.

With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorised access to the server and securely store artifacts used to authenticate the server platforms while the Intrusion Detection kit logs and alerts when the server hood is removed.

World-Class Performance

HPE enhances performance by taking server tuning to the next level. Workload Performance Advisor adds real-time tuning recommendations driven by server resource usage analytics and builds upon existing tuning features such as Workload Matching and Jitter Smoothing.

The HPE ProLiant DL380 Gen10 server supports industry standard technology leveraging the latest Intel Xeon Processor Scalable Family with up to 28 cores, 12 Gb SAS and 3.0 TB of HPE DDR4 SmartMemory.

The HPE ProLiant DL380 Gen10 server supports up to three double-wide or five single-wide GPUs for workload acceleration.

Industry Leading Services and Ease of Deployment

The HPE ProLiant DL380 Gen10 server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk, and helping customers realize agility and stability.

HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; HPE iLO Amplifier Pack, Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).

Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Specifications:

HPE ProLiant DL380 Gen10 Server Specifications
Processor Name	Intel
Processor family	Intel Xeon Scalable 8100/8200 series Intel Xeon Scalable 6100/6200 series Intel Xeon Scalable 5100/5200 series Intel Xeon Scalable 4100/4200 series Intel Xeon Scalable 3100/3200 series
Number of processors	1 or 2
Processor core available	4 to 28 core, depending on model
Processor cache	8.25 - 38.50 MB L3, depending on processor model
Processor speed	3.8 GHz, maximum depending on processor
Power supply type	2 Flexible Slot power supplies, maximum depending on model
Expansion slots	8, for detail descriptions reference the QuickSpecs
Maximum memory	3.0 TB with 128 GB DDR4 6.0 TB with 512 GB HPE DC Persistent Memory Modules (Available 2H19)
Memory, standard	3.0 TB (24 X 128 GB) LRDIMM 6.0 TB (12 X 512 GB) HPE DC Persistent Memory Modules - available 2H19
Memory slots	24 DIMM slots
Memory type	HPE DDR4 SmartMemory and HPE DC Persistent Memory (available 2H19), depending on model
System fan features	Hot-plug redundant fans, standard
Network controller	HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Storage controller	1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
Minimum dimensions ( H x W x D)	44.55 x 73.03 x 8.74 cm
Weight	14.76 kg
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional requires licenses)
Warranty	3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Hardware Specs:

HPE ProLiant DL380 Gen10 Server

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.

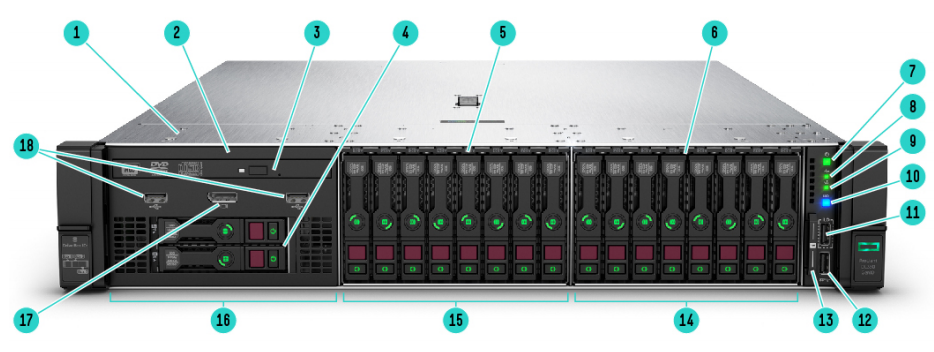

Front View - SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown

1. Quick removal access panel
2. Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)
3. Optional Optical drive. Requires Universal Media bay
4. Optional 2 SFF HDD, requires optional Universal Media bay
5. Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)
6. 8 SFF Drive Cage Bay
7. Power On/Standby button and system power LED button
8. Health LED
9. NIC status
10. UID button
11. iLO Front Service Port
12. USB 3.0
13. Serial label pull tag
14. Box 3
15. Box 2
16. Box 1
17. Optional front display port (Via Universal Media Bay)
18. Optional USB 2.0 (via Universal Media Bay)

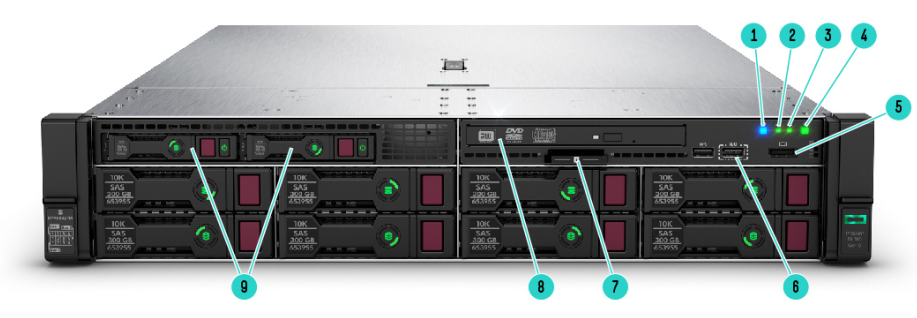

Front View - 8LFF chassis with Universal media bay and optional 2SFF and optical drive shown

1. UID button
2. Health LED
3. NIC status
4. Power On/Standby button and system power LED button
5. Front display port
6. iLO Front Service Port
7. Serial label pull tag
8. Optional optical drive shown (blank as standard)
9. Optional 2 SFF Drive bay, 2 NVMe shown

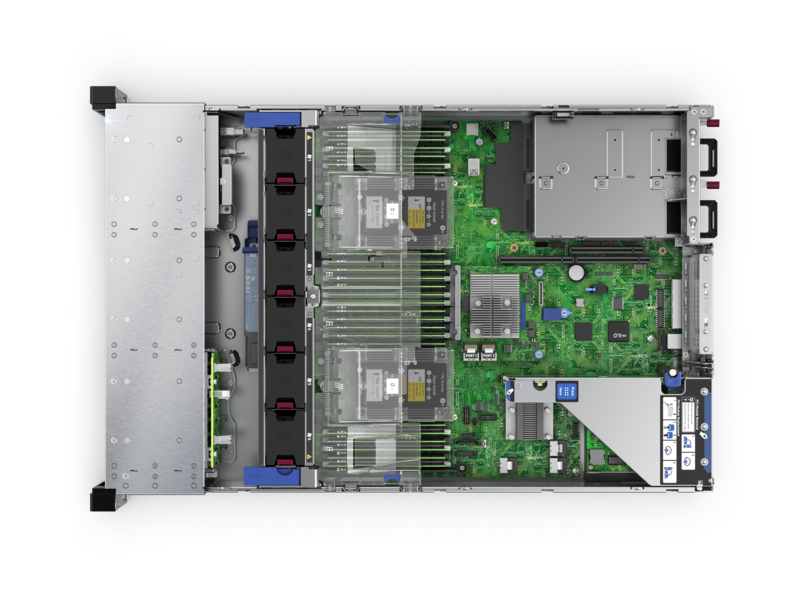

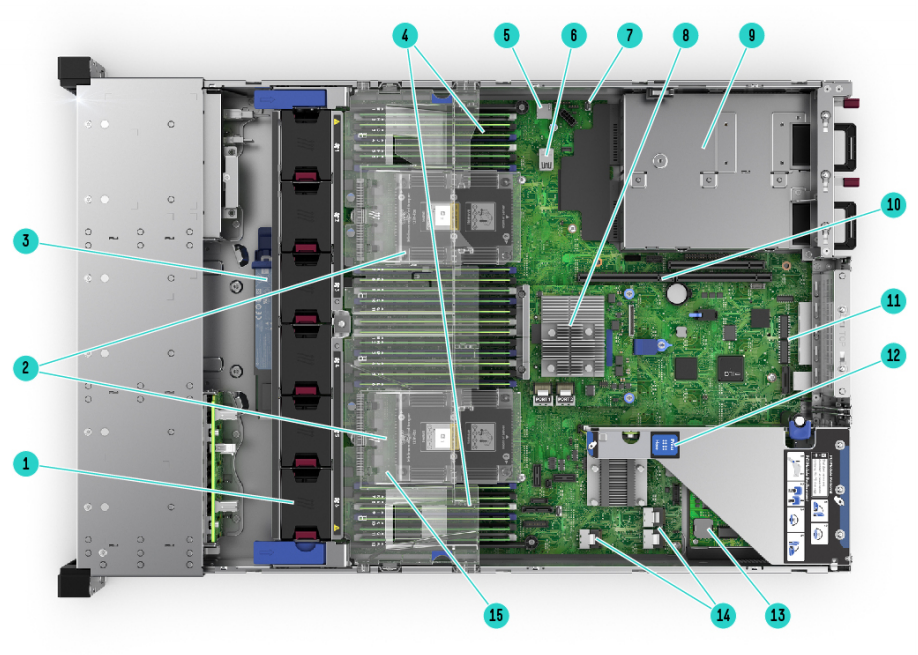

Internal View - 8SFF chassis with optional 2nd CPU, FlexLOM, Smart array shown

1. Fan cage shown with 6 standard Hot-plug fans (High Performance temperature fans optional)
2. 2 Processors, heatsink showing
3. Optional HPE Smart Hybrid Capacitor or HPE Smart Storage Battery
4. DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)
5. MicroSD card slot (Optional Dual Micro-SD option)
6. Internal USB 3.0 connector
7. Chassis intrusion detection connector
8. Optional HPE Smart Array (P408i-a shown)Clear air baffle
9. (Under) Hot Plug redundant HPE Flexible Slot Power supplies
10. Connection for second (optional) riser (Requires second CPU)
11. Embedded 4x1Gbe NIC
12. Primary PCIe riser, standard (Optional double wide GPU riser)
13. Optional Flexible LOM slot
14. X4 SATA ports (1, 2 and 3)
15. Clear air baffle

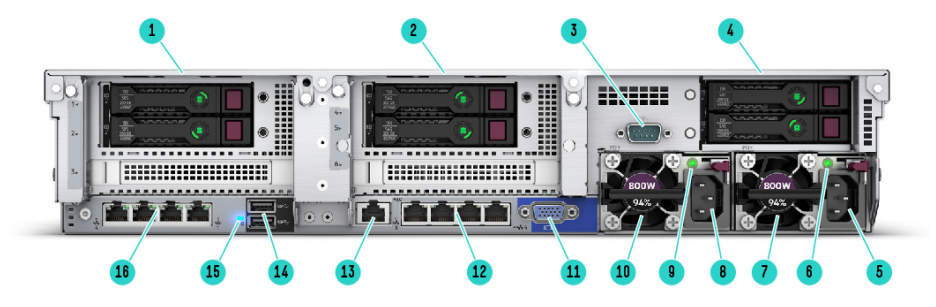

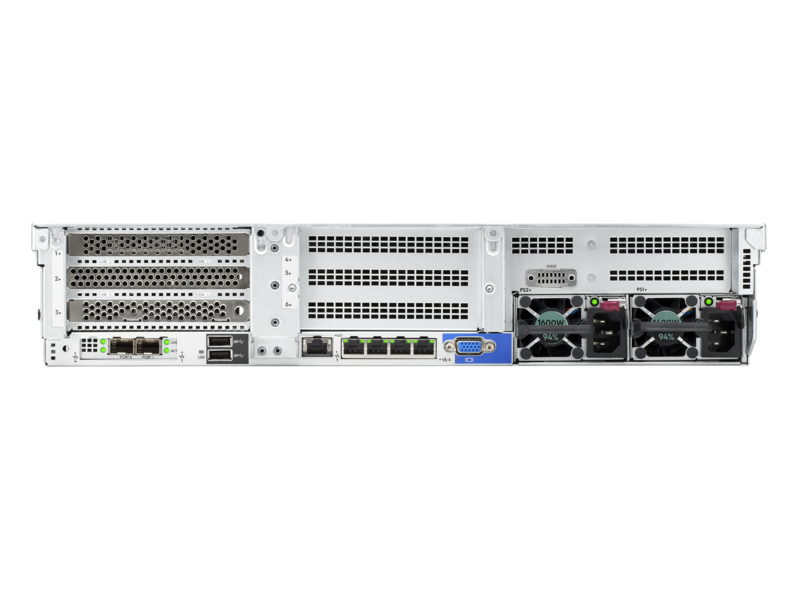

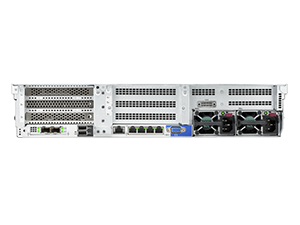

Rear View - With optional FlexLOM, Rear drives and Serial port shown.

1. Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives
2. Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear
3. Optional serial port
4. Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)
5. Power supply Power connection
6. Power supply Power LED
7. HPE Flexible Slot Power Supply bay 1 (800W shown)
8. Power supply Power connection
9. Power supply Power LED
10. HPE Flexible Slot Power Supply bay 2 (800W shown)
11. VGA connector
12. Embedded 4 x 1GbE Network Adapter
13. Dedicated iLO management port
14. USB connectors 3.0 (2)
15. Unit ID LED
16. Optional FlexibleLOM ports (Shown: 4 x 1GbE)

Views:

Services:

HPE Pointnext

HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes-Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.

Operational Services

• HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
• HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
• HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
• HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.

Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.

Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.

Documentation:

Download the hpe proliant dl380 gen10 server datasheet (.pdf)
