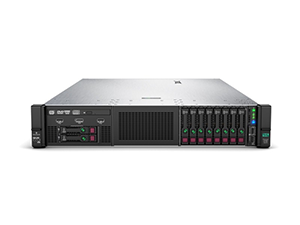

HPE ProLiant DL560 Gen10 Server
ProLiant DL Servers

Features:

Scalable 4P Performance in a Dense 2U Form Factor

The HPE ProLiant DL560 Gen10 Server provides 4P computing in a dense 2U form factor and supports up to four Intel Xeon Platinum (8100 series) and Gold (6100 and 5100 series) processors which provide up to 68% more processor performance and 27% more cores than the previous generation.

Up to 48 DIMM slots which support up to 3 TB for 2666 MT/s DDR4 HPE Smart memory. HPE DDR4 SmartMemory improves workload performance and power efficiency while reducing data loss and downtime with enhanced error handling.

Choice of HPE FlexibleLOM Adapters offers range of networking bandwidth (1GbE to 25GbE) and fabric so you can adapt and grow to changing business needs.

HPE Innovation with Intelligent System Tuning optimizes workload performance using customized profiles to tune internal resources; with improved throughput for all workloads including latency-sensitive workloads such as high-frequency trading with jitter smoothing.

Flexible New Generation Expandability and Reliability for Multiple Workloads

The HPE ProLiant DL560 Gen10 Server has a flexible processor tray allowing to Scale up from 2 to 4 processors only when you need, saving on upfront costs and the flexible drive cage design supports up to 24 SFF SAS/SATA with a maximum of 12 NVMe drives.

Supports up to eight PCIe 3.0 expansion slots for graphical processing units (GPUs) and networking cards offering increased I/O bandwidth and expandability.

Up to four, 96% efficient 800W or 1600W HPE Flex slot power supplies which enable higher power redundant configurations and flexible voltage ranges. The slots provide the capability to trade-off between 2+2 power supplies or use as extra PCIe slots.

Secure and Reliable

Only HPE offers industry standard servers with major firmware anchored directly into the silicon. with security protection built in across the server lifecycle starting with Silicon Root of Trust.

Millions of lines of firmware code run before server operating system boots and with Runtime Firmware Validation, enabled by iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.

Additional security options are available with, Trusted Platform Module (TPM), to prevent unauthorised access to the server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.

Agile Infrastructure Management for Accelerating IT Service Delivery

With the HPE ProLiant DL560 Gen10 Server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking.

A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; iLO Amplifier Pack, SUM (Smart Update Manager) and SPP (Service Pack for ProLiant) for updates.

HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Specifications:

HPE ProLiant DL560 Gen10 Server Specifications
Processor family	Intel Xeon Scalable 8100 series, Intel Xeon Scalable 6100 series, Intel Xeon Scalable 5100 series
Processor core available	28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 8 or 6 or 4, per processor, depending on model
Processor cache	13.75 MB L3, 16.50 MB L3, 19.25 MB L3, 22.00 MB L3, 24.75 MB L3, 27.50 MB L3, 30.25 MB L3, 33.00 MB L3, 35.75 MB L3, 38.50 MB L3
Processor speed	3.6 GHz, maximum depending on processor
Power supply type	4 HPE Flexible Slot Power Supplies, maximum depending on model
Expansion slots	8 maximum, for detail descriptions reference the QuickSpecs
Maximum memory	3.0 TB
Memory slots	48 DIMM slots maximum
Memory type	HPE DDR4 SmartMemory
System fan features	Hot plug redundant standard
Network controller	Optional FlexibleLOM
Storage controller	HPE Smart Array S100i or HPE Smart Array P408i-a SR Gen10 Controller or HPE Smart Array P816i-a SR Gen10 Controller, depending on model
Minimum dimensions ( H x W x D)	44.55 x 75.47 x 8.75 cm
Weight	34.12 kg
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, Insight Control and HPE OneView Advanced (optional require licenses)
Warranty	3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Hardware Specs:

HPE ProLiant DL560 Gen10 Server

The HPE ProLiant DL560 Gen10 Server is a high-density, four-socket (4S) server with high performance, scalability and reliability, all in a 2U chassis. Supporting the latest 2nd generation Intel Xeon Scalable processors, the HPE ProLiant DL560 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to eight PCIe 3.0 slots, up to 12 TB of HPE Persistent Memory plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.

The HPE ProLiant DL560 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.

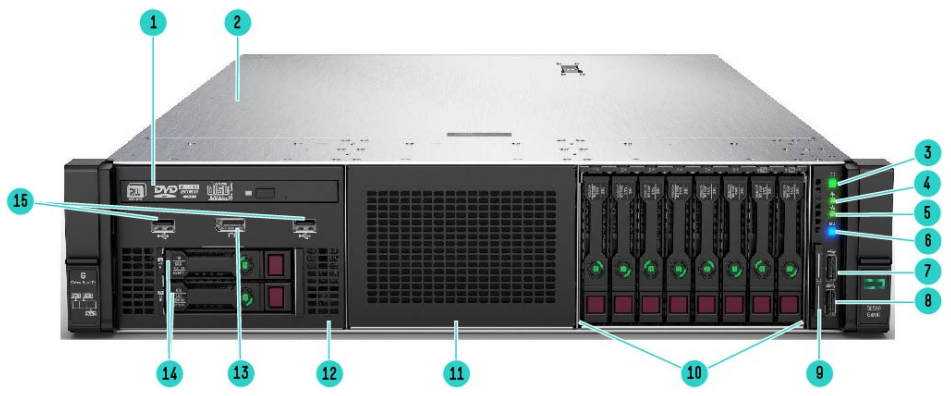

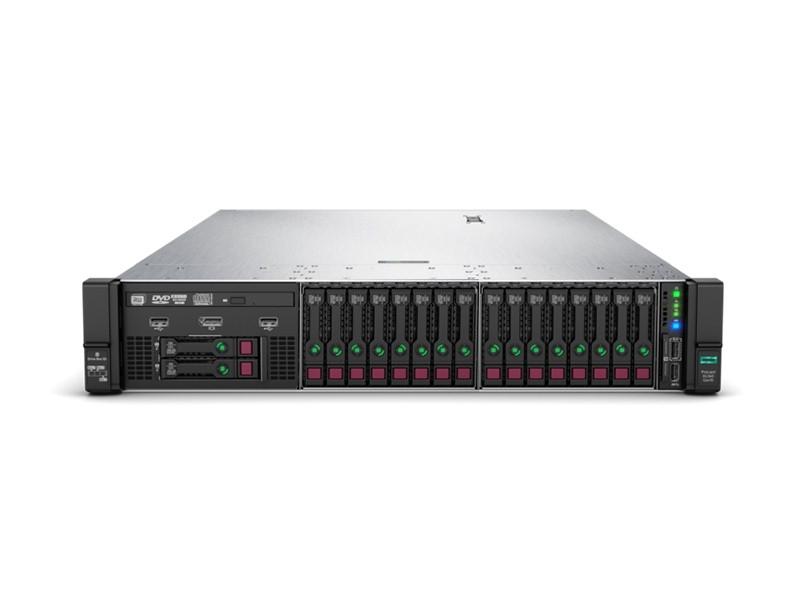

HPE ProLiant DL560 Gen10 Server - Front View

1. Optional Optical drive. Requires Universal Media bay
2. Quick removal access panel
3. Power On/Standby button and system power LED button
4. Health LED
5. NIC Status
6. UID Button/LED
7. iLO Front Service Port
8. USB 3.0
9. Serial label pull tag
10. Drive Box 3. (8 SFF or 6SFF+2NVMe optional)
11. Drive Box 2. (8 SFF or 6SFF+2NVMe or 8 NVMe SSD optional)
12. Drive Box 1.(Optional Universal Media bay or 8 SFF bay or 6 SFF+2NVMe optional)
13. Optional front Display Port(via Universal Media Bay)
14. Optional 2 SFF HDD, requires optional Universal Media bay
15. Optional USB 2.0 (via Universal Media Bay)

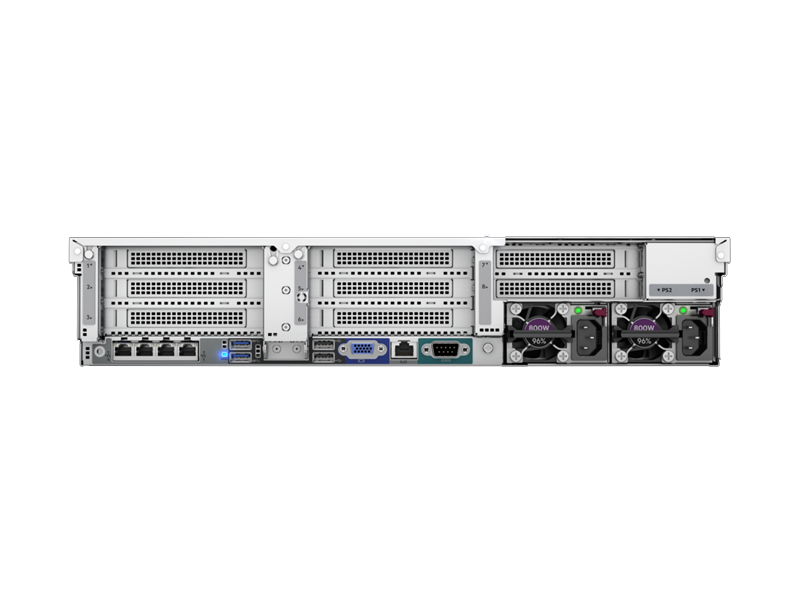

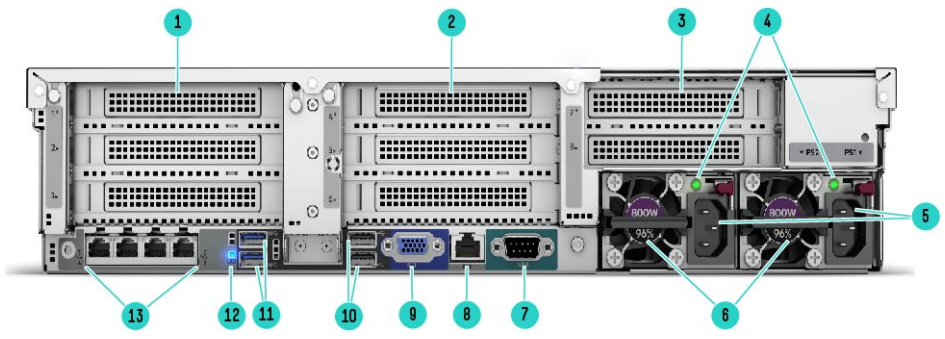

Rear View - DL560 Gen10

1. PCIe Slots (Slots 1-3 top to bottom, riser shipped standard)
2. PCIe Slots (Slots 4-6 top to bottom, requires second riser card and second processor)
3. PCIe Slots (Slots 7-8 top to bottom), requires tertiary riser card and second processor, Not available with 4x Flex Slot power supplies
4. Power supply power LEDs
5. Power supply power connections
6. HPE Flexible Slot Power Supply bay 1 and 2 (800W PS shown)
7. Serial connector
8. Dedicated iLO connector
9. VGA (video) connector
10. USB connectors 2.0 (2)
11. USB connectors 3.0 (2)
12. Unit ID LED
13. FlexibleLOM ports (Port 1 on right side)

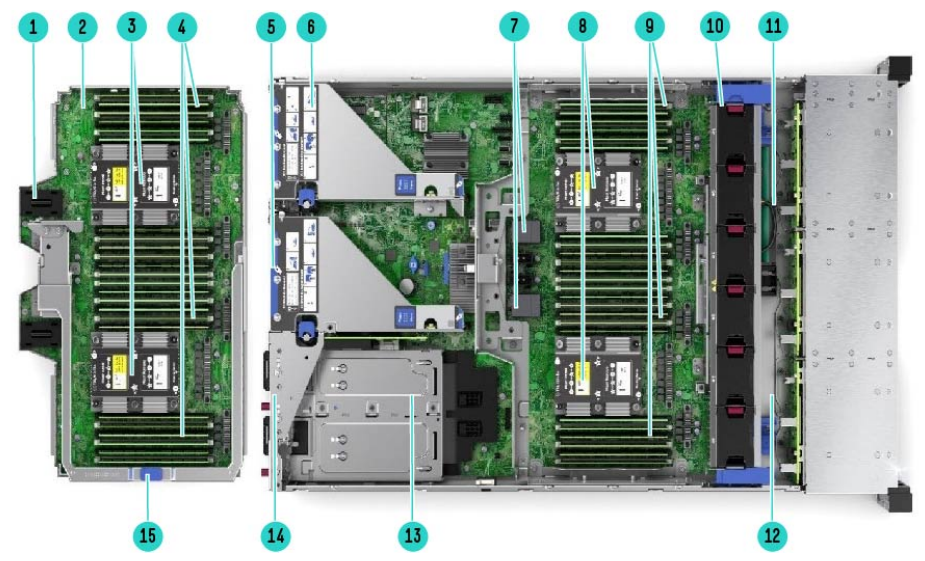

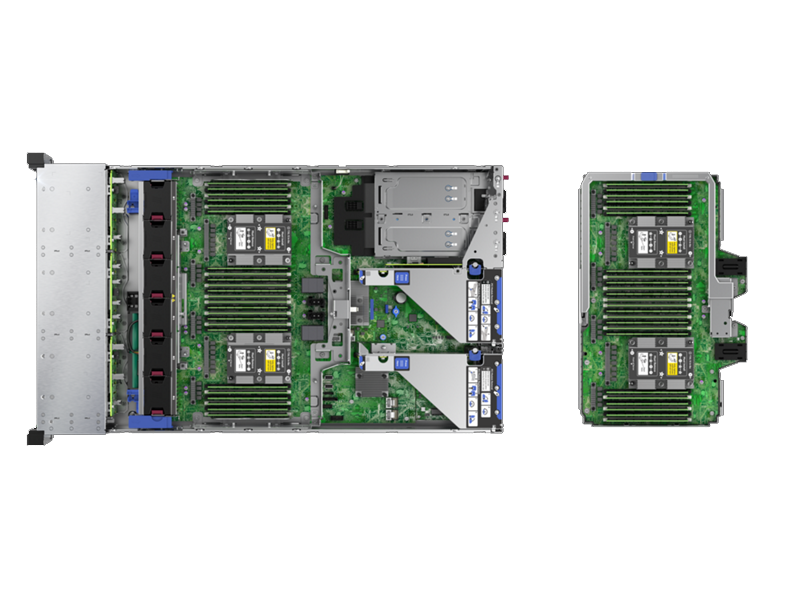

Internal View: DL560 Gen10 with upper CPU mezzanine tray

1. Left connector used for DL560 4-port NVMe Mezzanine card (Daughter card)
2. Upper CPU Mezzanine Board Kit
3. 2 Processors, heatsink showing on upper CPU mezzanine board kit
4. DDR4 DIMM slots on upper CPU mezzanine board kit. Shown fully populated in 24 slots (12 per processor)
5. Optional secondary PCIe riser
6. Default primary PCIe riser
7. UPI connectors for upper CPU mezzanine board kit
8. 2 Processors, heatsink showing
9. DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)
10. Fan cage shown with 6 standard Hot-plug fans
11. HPE Smart Storage Battery 1 or HPE Smart Storage Hybrid Capacitor
12. HPE Smart Storage Battery 2
13. (Under) Hot Plug redundant HPE Flexible Slot Power supplies
14. Optional Tertiary riser
15. Handle for removing upper CPU Mezzanine Board Kit

Views:

Services:

HPE Pointnext

HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes-Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.

Operational Services

• HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
• HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
• HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
• HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.

Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.

Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.

Documentation:

Download the hpe proliant dl560 gen10 server datasheet (.pdf)
