HPE ProLiant DL360 Gen10 Server
ProLiant DL Servers

Features:

Industry-leading Performance with Versatile Compute

HPE ProLiant DL360 Gen10 Server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2933 MT/s HPE DDR4 SmartMemory.

HPE DC Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.6

Achieve greater capacity with flexible drive configurations with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivering enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.

With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 Server delivers up to 192 GB per system.7

Innovative Design for Flexibility and Choice

The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.

Embedded 4x 1GbE along with HPE FlexibleLOM or PCIe standup 1GbE, 10GbE, or 25GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.

Security Innovations

HPE iLO 5 enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.

New features include Server Configuration Lock that ensures secure transit and locks server hardware configuration, iLO Security Dashboard helps detect and address possible security vulnerabilities and Workload Performance Advisor provides server tuning recommendations for better server performance.

With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorised access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.

Industry-Leading Serviceability and Deployment

HPE ProLiant DL360 Gen10 Server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realize agility and stability.

Services from HPE Pointnext simplifies the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

Services provided under Operational Services include - HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Specifications:

Hardware Specs:

HPE ProLiant DL360 Gen10 Server

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise.

The HPE ProLiant DL360 Gen10 Server supports the Intel Xeon Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added performance that HPE next-generation persistent memory (available 2H19), HPE NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.

8 SFF Front View - 8 SFF + 2 SFF- Universal Media Bay option shown

1. Drive support label
2. Quick removal access panel
3. Serial no. label pull tab
4. Universal Media Bay: +2 SFF SAS/SATA shown
   Option: +2 SFF NVMe drives
   Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit
   Option: +2 Dual uFF (4x M.2 cartridges)
   Option: Display port + USB 2.0 port Kit + Blank
5. Power On/Standby button and system power LED
6. Health LED
7. NIC status LED
8. UID button/LED
9. USB 3.0 port
10. iLO Service Port
11. Standard 8 SAS/SATA drive bays

NOTE: Rear drive option allows for an additional + 1 SFF or +1 Dual uFF (2x M.2 cartridges).
NOTE: System Insight Display (SID) module will include #5-9 above (will not include #10 - iLO Service Port).

Premium 10SFF NVMe Front View

1. Drive support label
2. Quick removal access panel
3. Serial no. label pull tab
4. Power On/Standby button and system power LED
5. Health LED
6. NIC status LED
7. UID button/LED
8. USB 3.0 port
9. iLO Service Port
10. Max up to 10 NVMe drives (PCIe direct attached) or 8 SAS/SATA + 2 NVMe

NOTE: Rear drive option allows for an additional + 1 SFF or +1 Dual uFF (2x M.2 cartridges).
NOTE: System Insight Display (SID) module will include #4-8 above (will not include #9 - iLO Service Port).

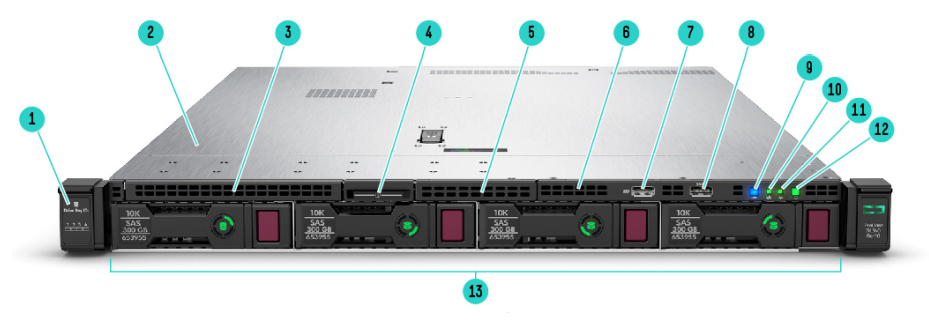

4 LFF Front View - Standard 4 LFF shown

1. Drive support label
2. Quick removal access panel
3. Option: DVD-RW or DVD-ROM (blank shown)
4. Serial no. label pull tab
5. Option: Display port & USB 2.0 port Kit (blank shown)
6. Option: System insight Display (SID) - standard shown
7. iLO Service Port
8. USB 3.0 Port
9. UID button/LED
10. Power On/Standby button and system power LED
11. Health LED
12. NIC status LED
13. SAS/SATA drive bays

NOTE: Rear drive option allows for additional + 1 SFF or +1 Dual uFF (2x M.2 cartridges), will lose one FH PCIe slot.

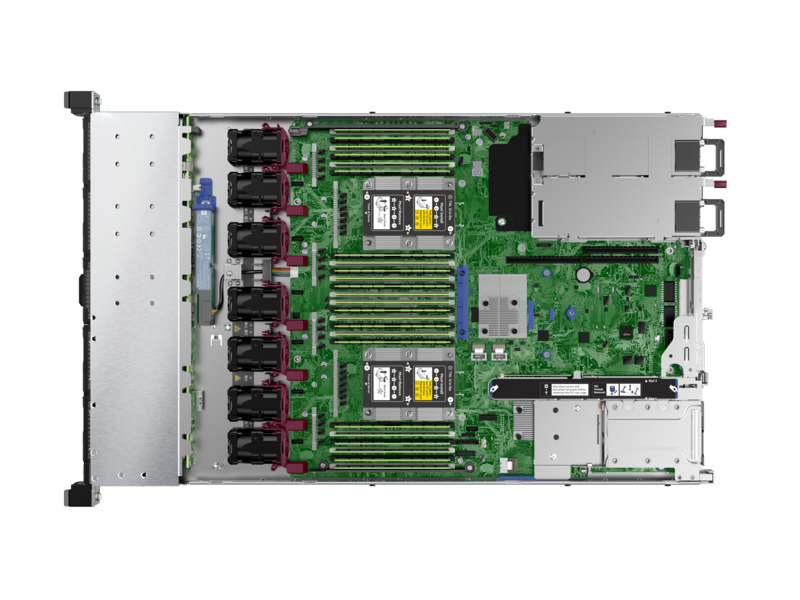

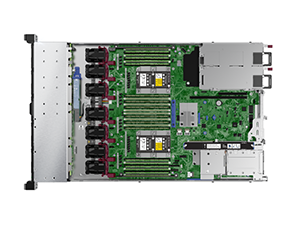

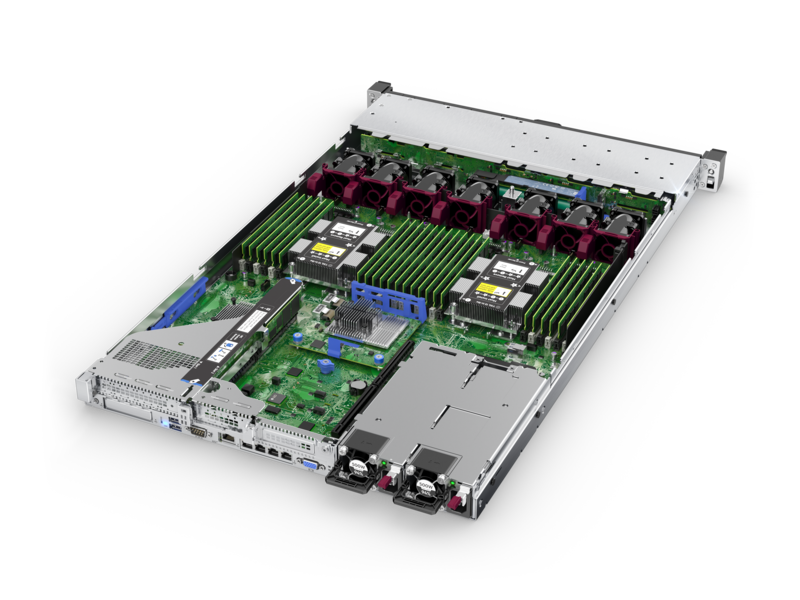

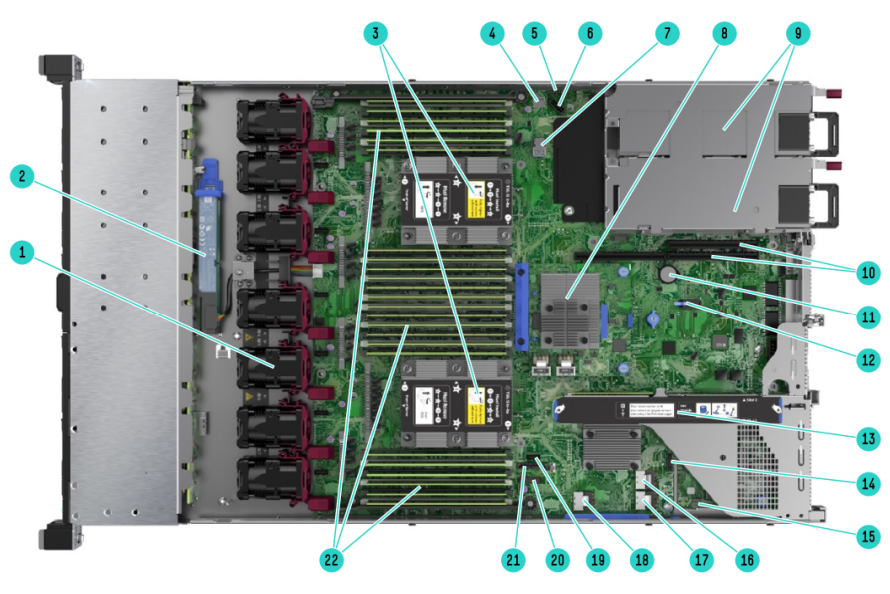

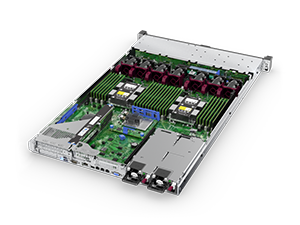

Internal View - Standard for all DL360 Gen10

1. For 8 SFF or 4 LFF - Standard single rotor hot plug fans
   1 CPU - 5 standard fans
   2 CPUs - 7 standard fans
   Option: High Performance fans
2. Option: HPE Smart Hybrid Capacitor or HPE Smart Storage Battery
3. Up to 2 processors (shown with standard heat sinks)
4. MicroSD card slot
5. Option: Chassis Intrusion Detection
6. Hard Drive backplane power connector
7. Dual internal USB 3.0 connector
8. Smart Array Controller (Type -a shown)
9. Up to 2 Power Supplies for redundant power
10. Secondary (CPU2) PCIe 3.0 riser
    Option: Full Height x16(Lose slot 2 on Primary riser)
11. System Battery
12. Optional: TPM 2.0
13. Primary (CPU1) PCIe 3.0 riser (Standard: GPU power connector + 1x 16 and 1x 8)
    Option: 2 SATA M.2 + 2x 16
    Option: (8 SFF only): 2x 4 NVMe + 1x 16 and 1x 8
14. Option: Front Display port / USB 2.0
15. FlexibleLOM (supports various NICs up to 25GbE)
16. x4 SATA port 1
17. x4 SATA port 2
18. x2 SATA port 3
19. x1 SATA port 4
20. Front Power USB 3.0 connector
21. Optical/SATA port 5
22. DDR4 DIMM slots (Fully populated 24 DIMMs shown)

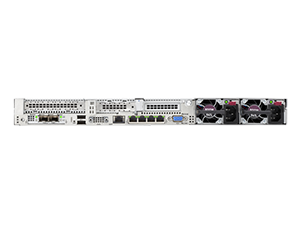

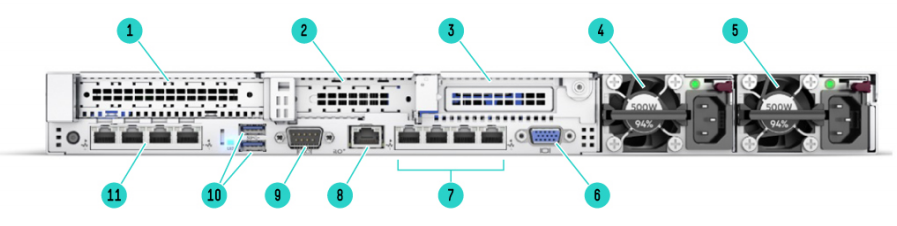

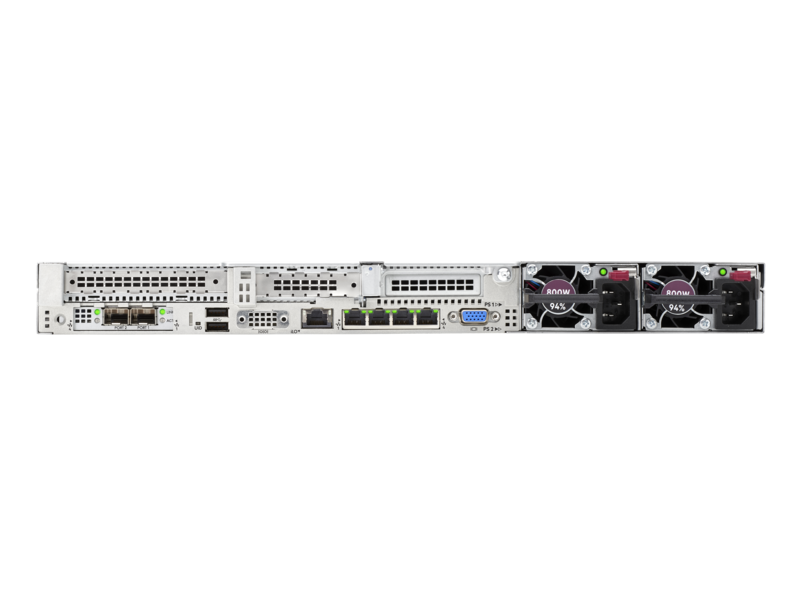

Rear View - Standard for all DL360 Gen10

1. Slot 1 PCIe 3.0
   Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges)
2. Slot 2 PCIe 3.0
3. Option: Slot 3 PCIe 3.0 (Requires 2nd processor)
4. Power Supply 2
5. Power Supply 1
6. VGA port
7. Embedded 4x 1GbE Adapter
8. iLO Management Port
9. Option: Serial Port
10. USB 3.0 Ports
11. Option: FlexibleLOM (Shown: 4x 1GbE)

Views:

Services:

HPE Pointnext

HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes-Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.

Operational Services

• HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
• HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
• HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
• HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.

Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.

Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.
