Overview:
Are you searching for a dense server with exceptional value to run on-premises and hybrid cloud solutions? The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers - from SMB to service providers running wide range of workloads at a compelling price point.
Features:
Scalability and Efficiency in a Dense Design
Supports Intel Xeon Scalable processors up to 8 cores and up to 85W.
Deploy mid-level virtualization, IT/ web infrastructure for SMBs and small enterprises.
Right balanced server to support multiple workloads.
Agile, Secure Infrastructure Management for Accelerating IT Service Delivery
HPE iLO 5 enables the world’s most secure industry standard servers with HPE silicon root of trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
Millions of lines of firmware code run before the server OS boots and with Runtime Firmware Verification, enabled by HPE iLO Advanced Premium Security Edition. The server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
Industry-Leading Serviceability and Simplified Deployment
HPE ProLiant DL160 Gen10 server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realize agility and stability.
Services from HPE Pointnext simplify the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Supports SMB focused offers regionally released as “Smart Buy Express” in the U.S.
Specifications:
| HPE ProLiant DL160 Gen10 Server Specifications | |
|---|---|
| Processor Name | Intel |
| Processor family | Intel Xeon Scalable 4100 series, Intel® Xeon® Scalable 3100 series |
| Number of processors | 1 or 2 |
| Processor core available | 8 core |
| Processor cache | 11 MB L3 |
| Processor speed | 2.1 GHz maximum depending on processor |
| Power supply type | 2 HPE Flexible Slot Power Supplies, maximum depending on model |
| Expansion slots | 3, for detailed descriptions reference the QuickSpecs |
| Maximum memory | 256 GB with 16 GB DDR4 |
| Memory, standard | 16 GB (1 X 16GB) RDIMM |
| Memory slots | 16 DIMM slots |
| Memory type | HPE DDR4 SmartMemory |
| System fan features | Standard single rotor hot swap fans |
| Network controller | HPE embedded 1 GbE Ethernet adapter 2-ports per controller and/or HPE 10/25 GbE Ethernet adapter 2- ports per controller depending on model. |
| Storage controller | 1 of the following, HPE Smart Array E208i-a SR Controller or HPE Smart Array E208i-p SR Controller or HPE Smart Array E208e-p SR Controller or HPE Smart Array P408i-a SR Controller |
| Minimum dimensions ( H x W x D) | 4.29 x 43.46 x 61.49 cm |
| Weight | 10.97 kg minimum, 15.74 kg maximum |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE iLO Advanced, and HPE iLO Advanced Premium Security Edition |
| Warranty | 3/3/3 Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support. |
Hardware Specs:
HPE ProLiant DL160 Gen10 Server
The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers - from SMB to Service Providers running wide range of workloads - at a compelling price point.

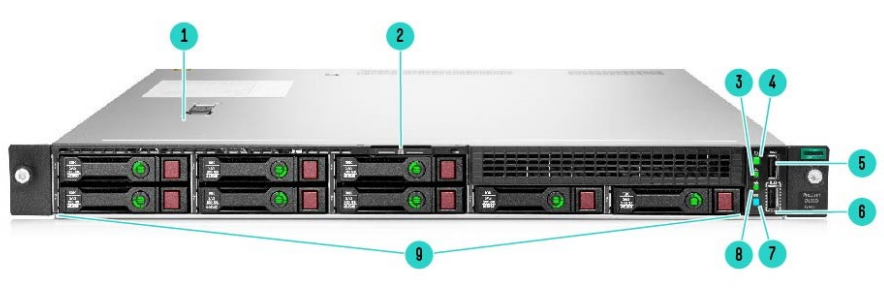

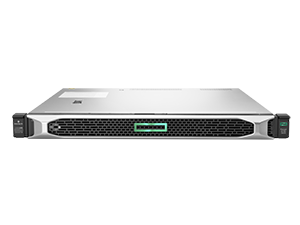

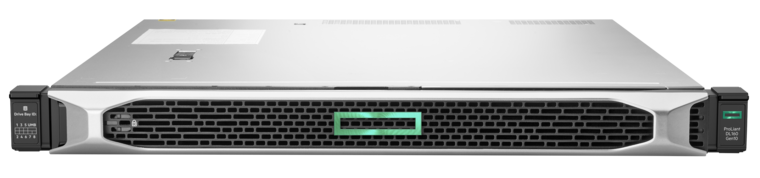

8 SFF chassis - Front View
- Quick removal access panel
- Serial no. label pull tab
- Optional Media Bay*
- Power On/Standby button and system power LED
- Health LED
- USB 3.0 port
- NIC status LED
- iLO Service Port
- UID button/LED
- Standard 8 SAS/SATA drive bays

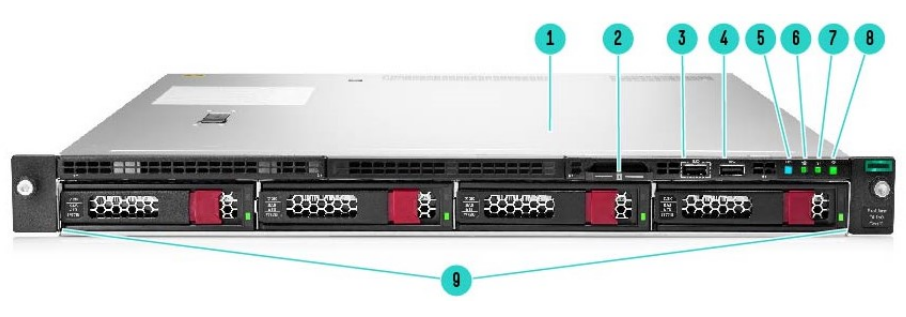

4 LFF chassis - Front View
- Quick removal access panel
- Serial no. label pull tab
- iLO Service Port
- USB 3.0 Port
- UID button/LED
- NIC status LED
- Health LED
- Power On/Standby button and system power LED
- 4 SAS/SATA drive bays

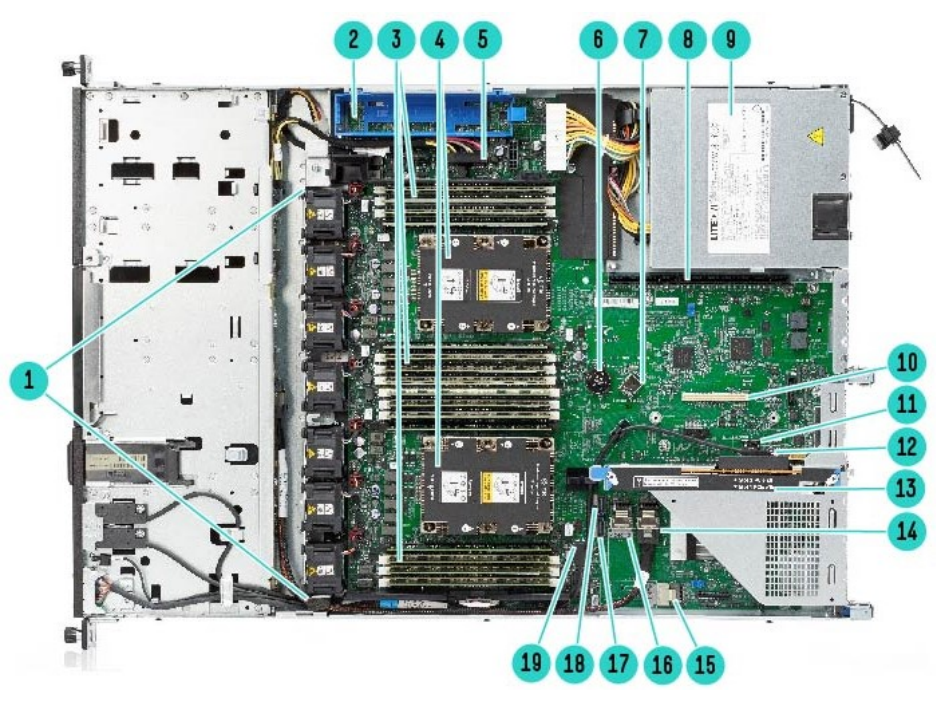

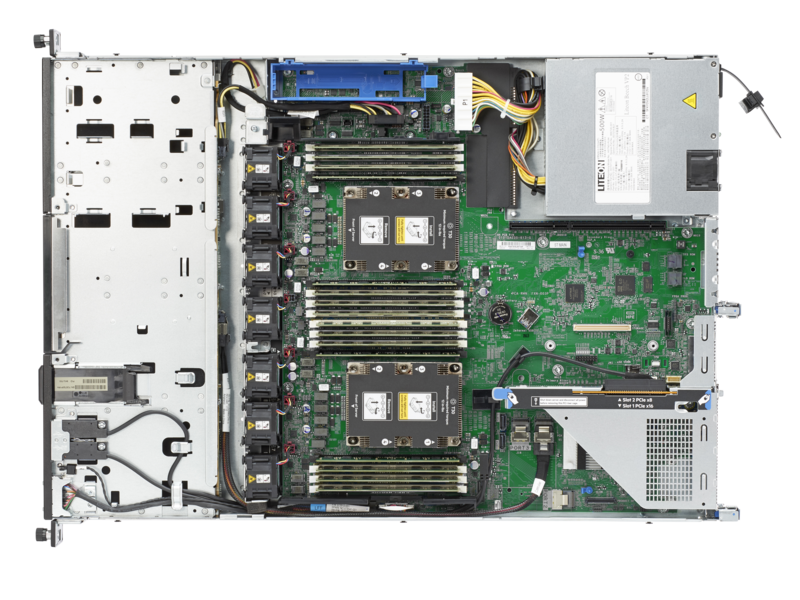

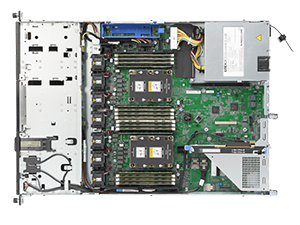

8SFF chassis - with optional 2nd CPU - Internal View
- Standard single rotor hot swap fans
1 CPU - 3 standard fans
Optional: 2 CPUs - 6 standard fans (redundant fan shown) - Optional: Smart Storage Battery (No battery shown)
- DDR4 DIMM slots (Fully populated 16 DIMMs shown)
- Up to 2 processors (shown with standard heat sinks)
- Hard Drive backplane power connector
- System Battery
- Internal USB 3.0 connector
- Secondary (CPU2) PCIe 3.0 riser
- Power supply (non-redundant power supply shown)
- Flexible Smart Array Controller Connector
- MicroSD card slot
- iLO Service Port Connector
- Primary (CPU1) PCIe 3.0 riser
- Mini-SAS port 1
- Mini-SAS port 2
- Mini-SAS port 3
- SATA port 4
- SATA port 5
- Front Power USB 3.0 connector

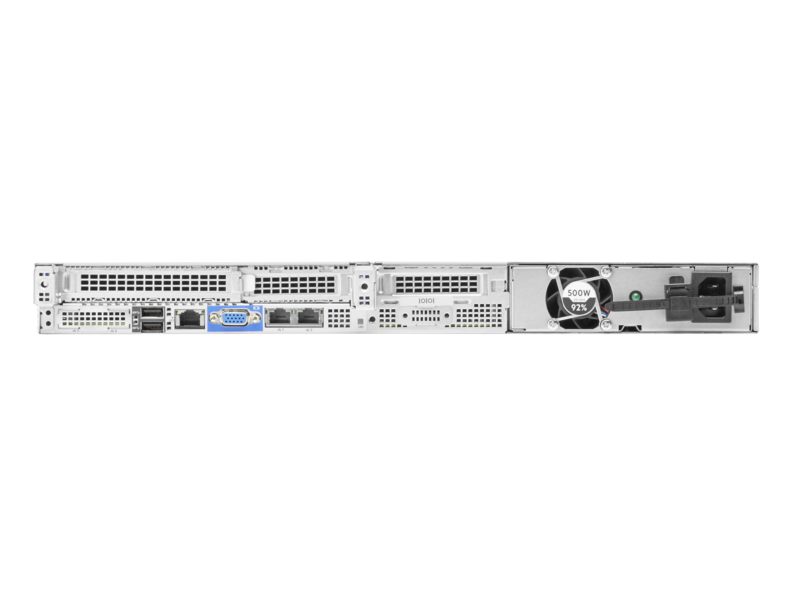

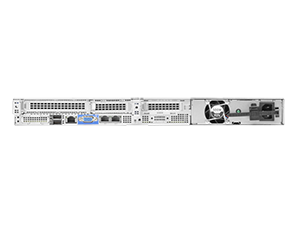

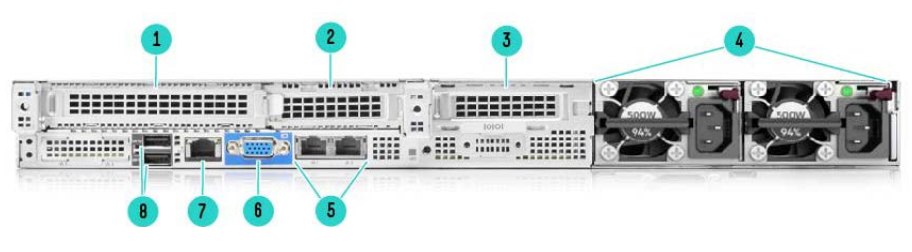

Rear View
- Slot 1 PCIe 3.0
- Slot 2 PCIe 3.0
- Optional: Slot 3 PCIe 3.0 (Requires 2nd processor)
- Power Supply (Redundant hot-plug shown)
- Embedded 2x 1GbE Adapter
- VGA Port
- iLO Management Port
- USB 3.0 Ports
Views:
Services:
HPE Pointnext
HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes-Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.
Operational Services
- HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
- HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
- HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
- HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.
Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.
Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.
