HPE ProLiant DL325 Gen10 Server
ProLiant DL Servers

Features:

Innovative design to take full advantage of the AMD infrastructure

HPE ProLiant DL325 Gen10 server has a dense chassis that accommodates up to ten SFF, up to four LFF, or up to ten NVMe drive options as well as up to three PCIe 3.0 slots.

The embedded SATA HPE Smart Array S100i Controller ships standard and the redesigned HPE Smart Array Essentials and Performance Controllers allow you the flexibility to choose the 12 Gbps controller most suited to your environment.

Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters, which offer a choice of networking bandwidth (1GbE to 4x10GbE) and fabric so you can adapt and grow to changing business needs.

Supporting a wide range of operating environments such as ClearOS and ClearVM Software from HPE in addition to traditional operating systems.

Security Innovations

Only Hewlett Packard Enterprise offers industry standard servers, such as the HPE ProLiant DL325 Gen10 server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle starting with silicon root of trust.

Millions of lines of firmware code run before server operating system boots and with Runtime Firmware Verification, enabled by the optional HPE iLO Advanced Premium Security Edition, the server’s firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised server.

Additional security options are available with Trusted Platform Module (TPM) to avoid unauthorised access to the server and store artifacts used to authenticate the server platforms, while the Intrusion Detection kit logs and alerts when the server hood is removed for further protection.

Delivering 2P Performance At 1P Economics

When comparing SPEC CPU results of a competitor’s server with two Intel® Xeon® Gold 5118 processors, the HPE ProLiant DL325 Gen10 Server with only a single AMD EPYC 7551P processor provided similar results but at a lower price.

HPE ProLiant DL325 Gen10 server supports industry standard technology utilizing the AMD EPYC 7000 series processor family with up to 32 cores, 12Gb SAS and 2.0 TB of HPE DDR4 SmartMemory.

Delivering high performance industry standard HPE Smart Memory up to 2666 MT/s DDR4 memory with up to 2 TB capacity.

Industry Leading Services and Ease of Deployment

HPE ProLiant DL325 Gen10 server comes standard with a complete set of services from HPE Pointnext, delivering confidence, reducing risk and helping customers realize agility and stability.

Services from HPE Pointnext simplifies the stages of your IT journey. Advisory and Transformation Services professionals understand customer challenges and design an ideal solution. Professional Services enables rapid deployment of solutions.

Services provided under Operational Services include: HPE GreenLake Flex Capacity, HPE Datacenter Care - Infrastructure Automation, HPE Campus Care, HPE Proactive Services and HPE Datacenter Care for Multi Vendor. Operational Services provides the ongoing support.

Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Specifications:

HPE ProLiant DL325 Gen10 Server Specifications
Processor Name	AMD
Processor family	AMD EPYC 7000 Series
Number of processors	1
Processor core available	32 or 24 or 16 or 8, depending on processor
Processor cache	32.00 MB L3 or 64.00 MB L3, depending on processor
Processor speed	3.2 GHz, maximum depending on processor
Drive supported	4 LFF SAS/SATA/SSD, 8 SFF SAS/SATA/SSD with Optional 2 SFF SAS/SATA/SSD or 2 SFF NVMe, 8 SFF NVMe with Optional 2 SFF NVMe or 2 SFF SAS/SATA/SSD depending on model
Expansion slots	3, for detail descriptions reference the QuickSpecs
Maximum memory	2.0 TB with 128 GB DDR4
Memory slots	16
Memory type	HPE DDR4 SmartMemory
Memory protection features	ECC
Network controller	HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional FlexibleLOM and/or optional PCIe Network adapters, depending on model
Storage controller	1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
Minimum dimensions ( H x W x D)	4.29 x 43.46 x 61.49 cm
Weight	10.70 kg minimum
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)
Warranty	3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support.

Hardware Specs:

HPE ProLiant DL325 Gen10 Server

The HPE ProLiant DL325 Gen10 Server is the secure and versatile single socket server for virtualization and I/O intensive workloads. This 1P, 1U server delivers and exceptional balance of processor, memory and I/O for 2P performance at 1P TCO. Get the most out of your virtualized environment with this versatile server.

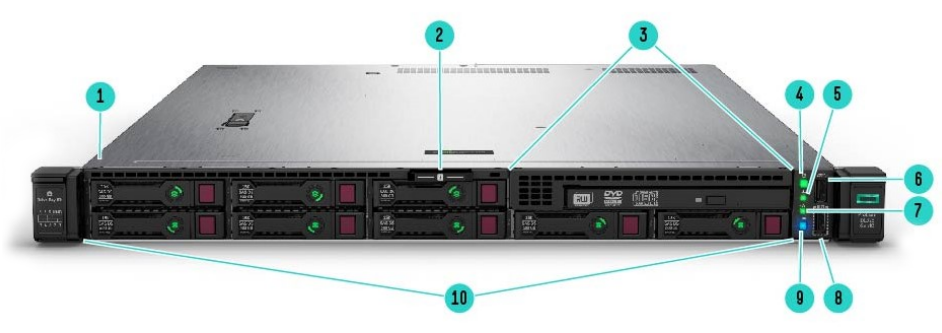

8SFF Front View - 8SFF + ODD Shown

1. Quick removal access panel
2. Serial no. label pull tab
3. Optional Media Bay*
4. Power On/Standby button and system power LED
5. Health LED
6. USB 3.0 port
7. NIC status LED
8. iLO Service Port
9. UID button/LED
10. Standard 8 SAS/SATA drive bays

Option Shown: DVD-RW or DVD-ROM
Option: +2 SFF SAS/SATA (total 10 SFF)
Option: +2 SFF NVMe drives

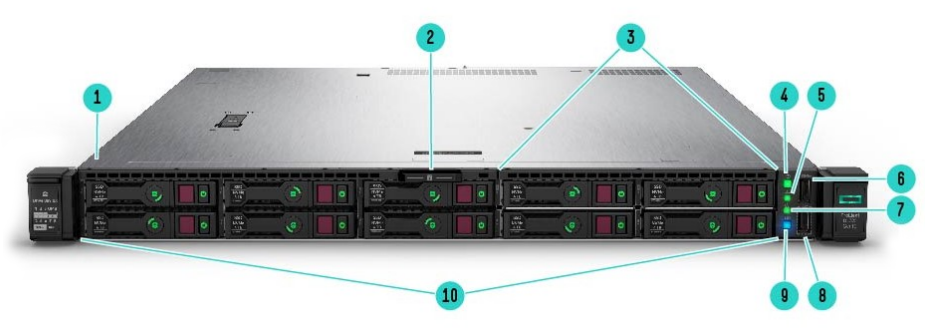

NVMe SFF Front View - 10 SFF NVMe Shown

1. Quick removal access panel
2. Serial no. label pull tab
3. Optional Media Bay*
4. Power On/Standby button and system power LED
5. Health LED
6. USB 3.0 port
7. NIC status LED
8. iLO Service Port
9. UID button/LED
10. Standard 8 NVMe drive bays

*Option Shown: +2 SFF NVMe drives (total 10SFF NVMe)
*Option: +2 SFF SAS/SATA
*Option: DVD-RW or DVD-ROM

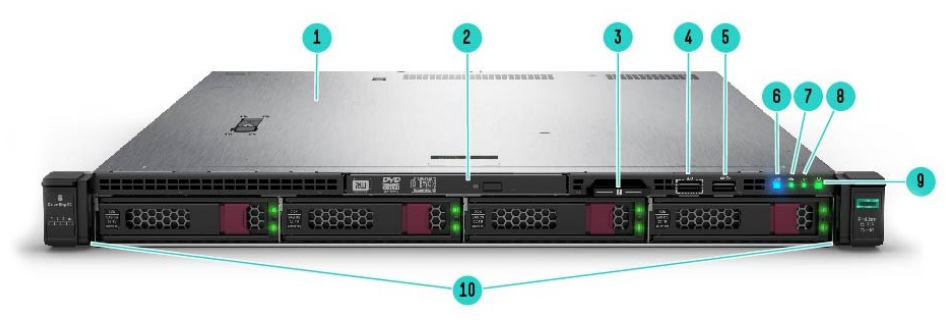

4LFF Front View - with Optional ODD shown

1. Quick removal access panel
2. Optional: DVD-RW or DVD-ROM shown
3. Serial no. label pull tab
4. iLO Service Port
5. USB 3.0 Port
6. UID button/LED
7. NIC status LED
8. Health LED
9. Power On/Standby button and system power LED
10. Standard 4 SAS/SATA drive bays

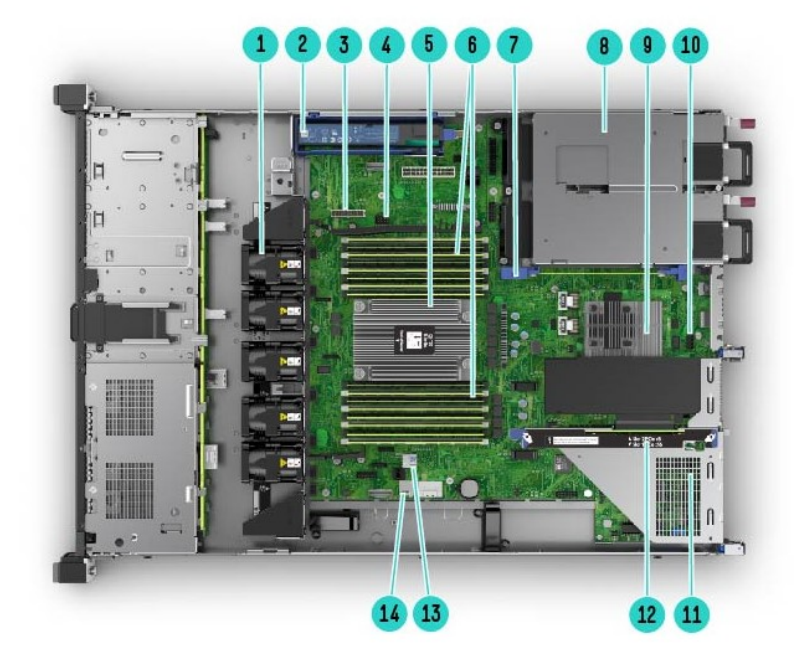

Internal View 8SFF chassis -with optional FlexLOM, Smart array shown

1. Fan cage shown with 5 Performance Hot-swappable fans
2. Optional HPE Smart Storage Battery
3. Hard drive Backplane Power Connector
4. Chassis intrusion detection connector
5. Processor (heatsinks shown)
6. DDR4 DIMM slots. Shown fully populated in 16 slots
7. Connection for second (optional) riser
8. Hot Plug redundant HPE Flexible Slot Power supplies
9. Optional HPE Flexible Smart Array Controller (P408i-a shown)
10. Serial Port Connector
11. (Under) Optional Flexible LOM slot
12. Primary PCIe riser, standard
13. Internal USB 3.0 connector
14. MicroSD card slot

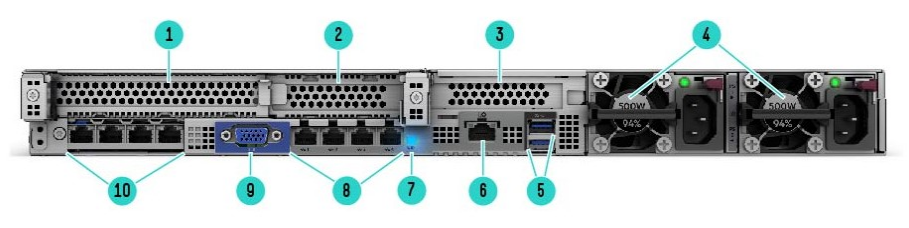

Rear View - With optional Fl1exLOM shown.

1. Slot 1 PCIe 3.0
2. Slot 2 PCIe 3.0
3. Optional Slot 3 PCIe 3.0
4. HPE Flexible Slot Power Supply Bay
5. USB 3.0 Ports
6. iLO Management Port
7. UID LED
8. Embedded 4x 1GbE Adapter
9. VGA Port
10. Option: FlexibleLOM (Shown: 4x 1GbE)

NOTE: Supports Various NICs up to 25GbE.

Views:

Services:

HPE Pointnext

HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes-Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.

Operational Services

• HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
• HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
• HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
• HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.

Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.

Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.
